Image to replaceAluminium

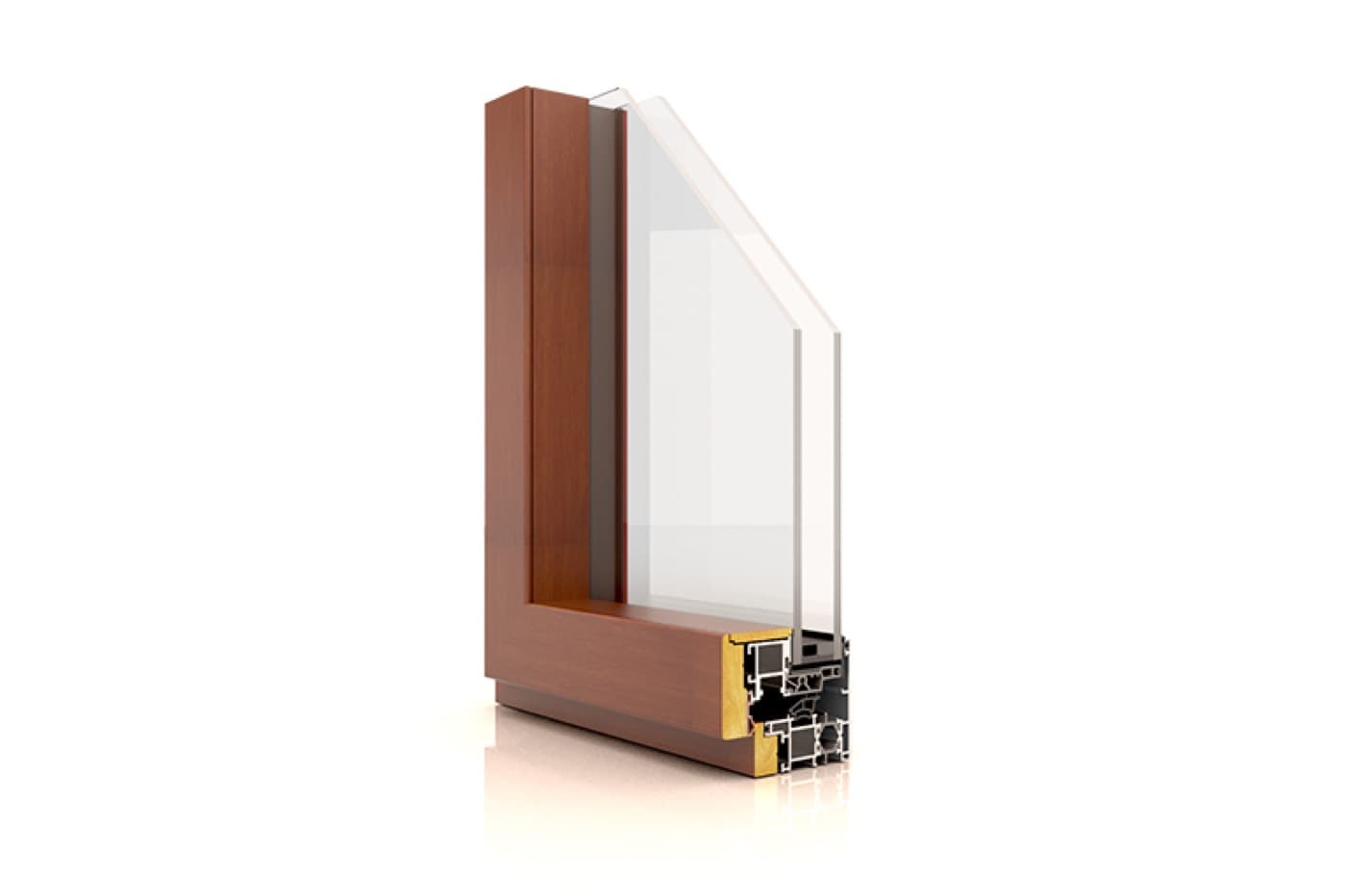

CX 700 AS — Concealed sash
Thermal-break casement system with a concealed sash: only the frame remains visible from outside.
CX 700 AS (catalogue variants CX700ASF, CX700AST, CX700ASE and related configurations) is for open-joint casements with a concealed sash. Outside, only 67 mm of frame is visible; the sash shows no aluminium externally. Fixed lights, top-hung and tilt-and-turn are supported.
Documentation
Technical catalogue — CX 700 AS / CX700AST
Features
- Concealed sash
- External sightline reduced to 67 mm
- Thermal break on the frame with 28 mm bars
- 16 mm perimeter hardware (including concealed hinges)
- AST variant included in the AS catalogue family
Opening types
- Concealed-sash casement
- Fixed
- Top-hung
- Tilt-and-turn
Glazing
- IGU from 28 to 36 mm (product page data)
- Double or triple IGU up to 36 mm (AS catalogue)
Applications
- Minimal architecture
- Villas
- Contemporary buildings
Specifications
- Fixed frame
- 71 mm (67 mm external sightline)
- Moving frame
- 90 mm (concealed sash)
- Sub-frame
- 70 mm
- Alloy
- ENAW 6060
- Thermal break
- 28 mm polyamide bars (frame)
- Air permeability (EN 12207)
- Class 4
- Watertightness (EN 12208)
- Class E1500
- Wind resistance (EN 12210)
- Class C4
- Thermal insulation Uw* (EN ISO 10077-2)
- 1.25 W/(m²K)
- Sound reduction (EN ISO 140-3)
- up to 44 dB
